Yanmar TL100VS (CAB)

Name: Yanmar TL100VS (CAB)
Brand: Yanmar
SKU: TL100VS(CAB)
Availability: OutOfStock

Yanmar TL100VS Studio — Click on the image to zoom.

Graphic dots — Click on the image to zoom.

Price Unavailable Online

Call to Purchase

Other Options:

Take a Test-Ride Visit Dealership

The all-new TL100VS is the heavy-duty leader in Yanmar’s debut lineup of compact track loaders. With a relentless 103.5HP engine, this machine does more than finish the job. Power through project after project for years to come with the latest innovation from a leader in compact equipment.

Standard Features;

Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow

Optional Features;

All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, rotating magnetic beacon, LED side lights, backup camera, Smart Assist remote telematics, Remote control kit, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control.

Do More – Sacrifice Less

Get more done with less material loss with optional material retention features. Operators can preset the attachment angle and loader arm position for convenience during repetitive tasks. Dual Direction Self Leveling and Automatic RideControl capabilities improve material retention. The TL100VS can be switched between high and low speed modes for efficient operation.
Convenience and Safety

Improve convenience and operator safety with a premium clear-sided cab, a 7” touch screen, and Yanmar SmartAssist Telematics. The system’s features range from error detection and work reports to integrated theft protection.
A Machine You Can Count On

Enjoy peace-of-mind with Yanmar’s 2-year/2,000-hour warranty and achieve maximum reliability and durability with the TL100VS’ heavy-duty suspended undercarriage. Featuring standard torsion axle suspension to smooth out the ride, the undercarriage improves operator comfort and material retention.

Warranty Information

2 Year 2,000 Hour Bumper-to-Bumper warranty, 7 year warranty available with Ycare

Loader Arms: Vertical
Operating Weight: 10,555LBS
Operating capacity (35% of tipping load): 3,780
Tipping Load: 10,800 lbs
Top Travel Speed: 8mph
Ground Pressure (at operating weight): 4.4psi
Engine: 4 cylinder diesel, Turbo
HorsePower: 103.5HP
Displacement: 3.1L
Track Width: 17.7 In.
Track Length (on the ground): 67 In.
Ground Contact Area: 2,372 In. 2
Drive System: Dual Hydraulic Drive Motors
Undercarriage Suspension: Two Independent torsion axles per undercarriage

Play product video: The Yanmar TL100VS: New Heavy-Duty Compact Track Loader

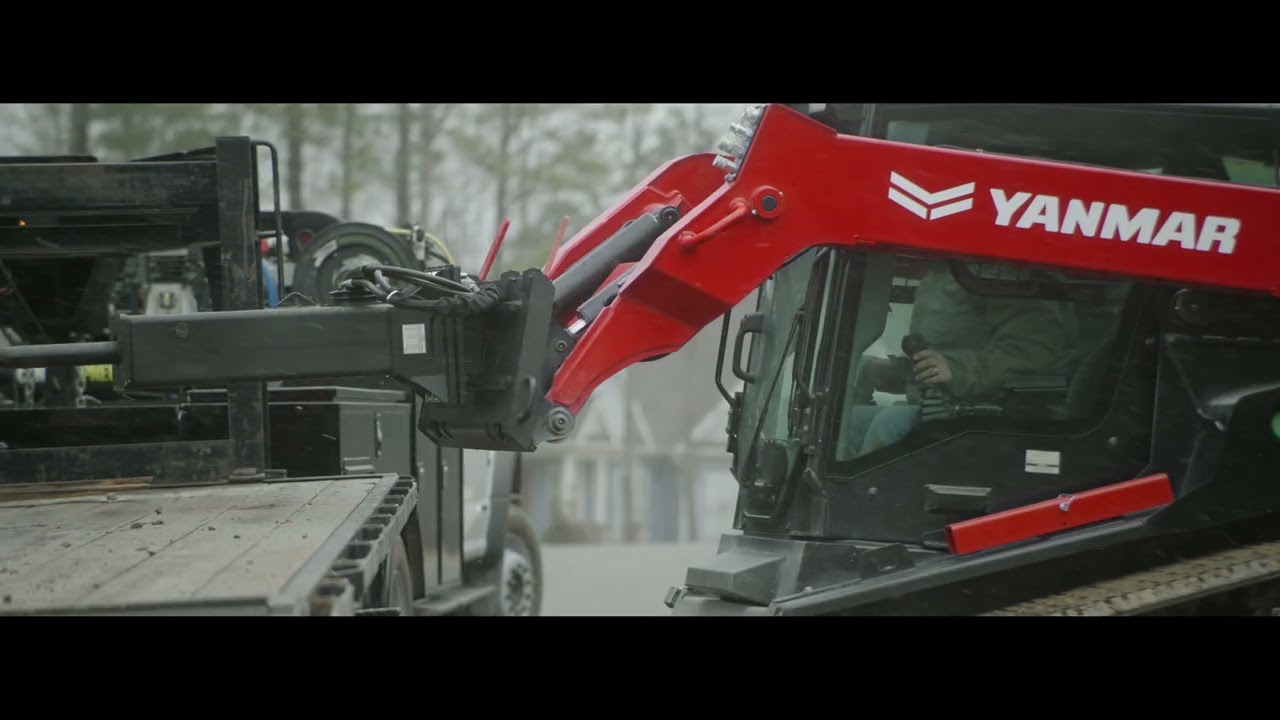

The Yanmar TL100VS: New Heavy-Duty Compact Track Loader
